Novo-Gloss Flex 60 Glossmeter

Novo-Gloss Flex 60 Glossmeter

  • Measures small footprint areas at 60 degrees
  • Measure curved and hard to reach surfaces
  • On board statistics, Bluetooth and USB data transfer
  • Enhanced accuracy measurement of low gloss finishes

Industries and Applications

Category:

Description

Description

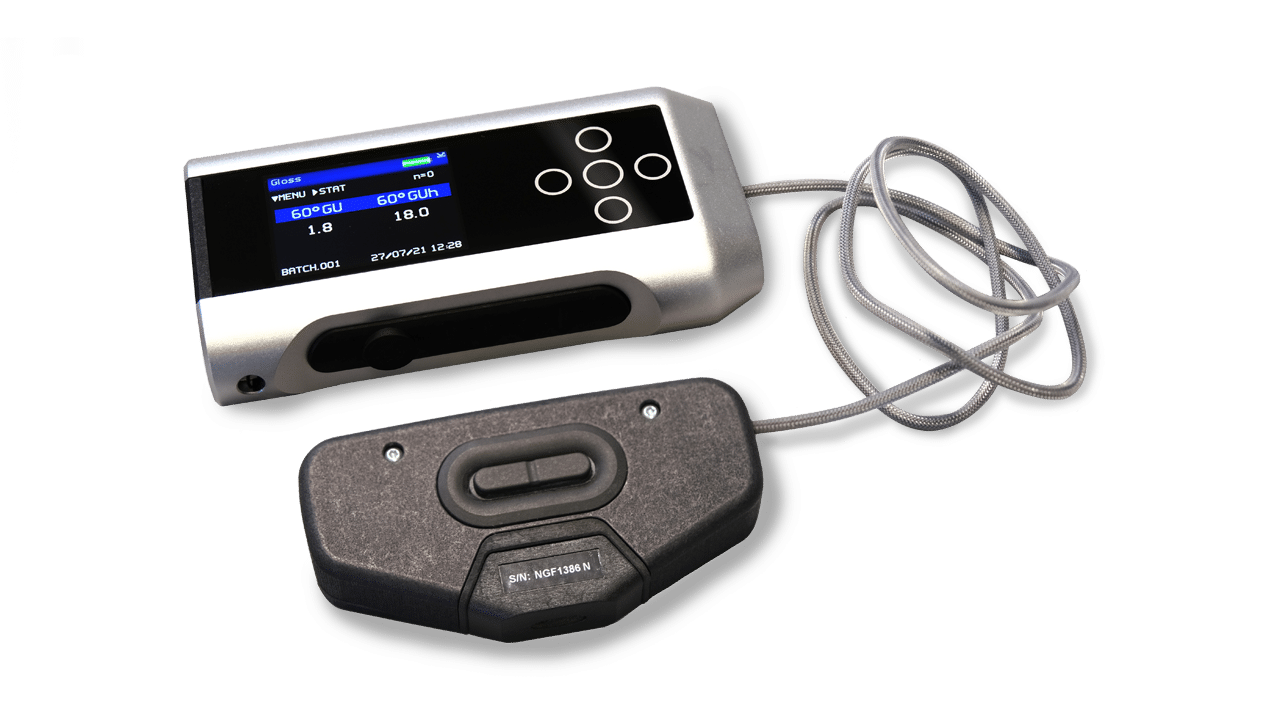

Designed specifically to measure the gloss of surfaces that cannot be measured using traditional glossmeters, the novo-gloss flex 60 glossmeter combines the functionality and reporting of an advanced glossmeter with an ultra lightweight remote measuring head.

The Novo-Gloss Flex 60 has been designed specifically to measure low gloss surfaces. It features an additional measuring scale with a resolution 10 times greater than standard glossmeters.

This increased resolution gives a far superior level of control of surface finish.

The Novo-Gloss Flex 60 complies to ISO 2813 and measurements made with the instrument are compatible with traditional glossmeters complying to these standards.

Features

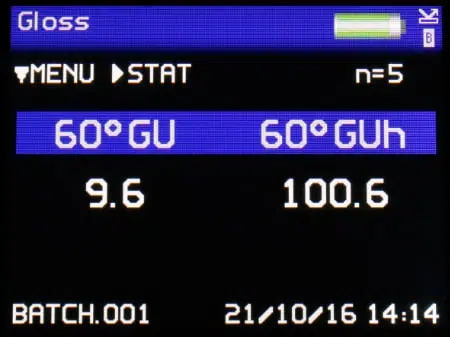

Simultaneous measurement of all parameters, results are date and time stamped.

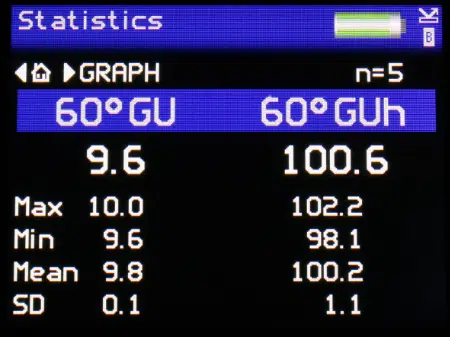

Displays full statistics for the number of readings in the current batch.

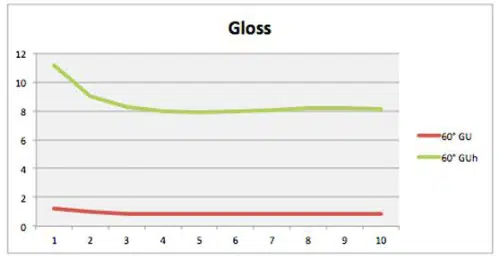

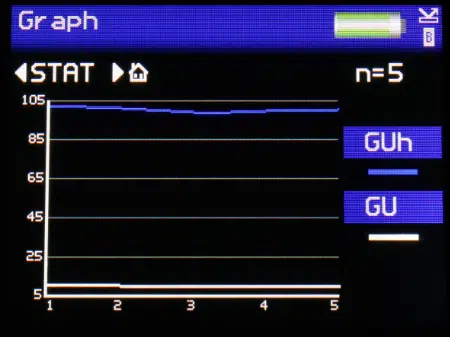

Graphical reporting for quick trend analysis.

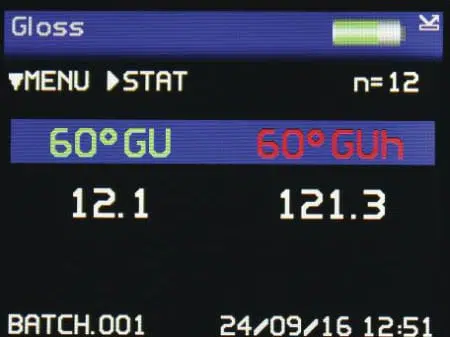

Pass / fail parameters can be defined for instant identification of non-conformances.

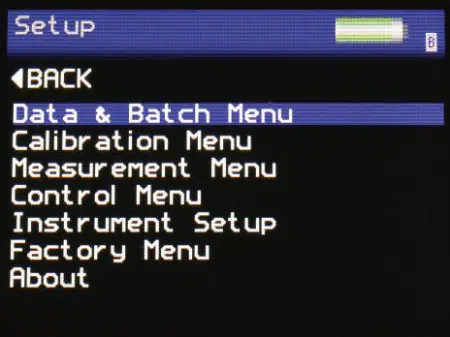

Easy Batching

User definable batch names and batch sizes for quicker and more efficient reporting.

Rapid data transfer

Software-free data transfer.

USB connection to PC instantly recognises the device as a drive location which facilitates the quick transfer of files using Windows Explorer or similar.

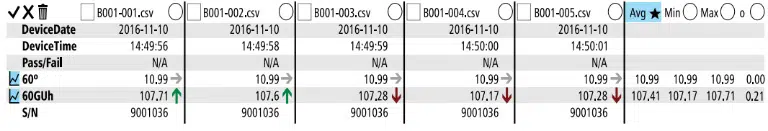

Novo-gloss multi gauge software

Analyse and compare individual measurements made with the instrument.

Direct data input via Bt wireless

Instantly transmit measured readings directly to programs such as MS Excel on your PC / tablet to greatly simplify the reporting process.

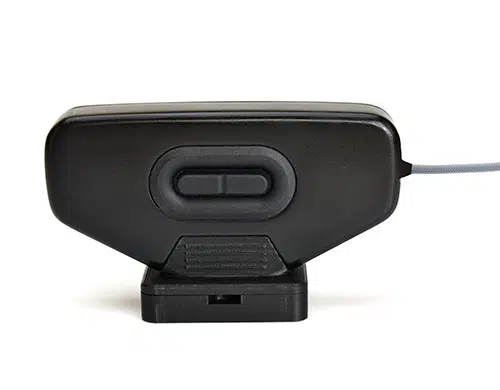

Instrument Calibration

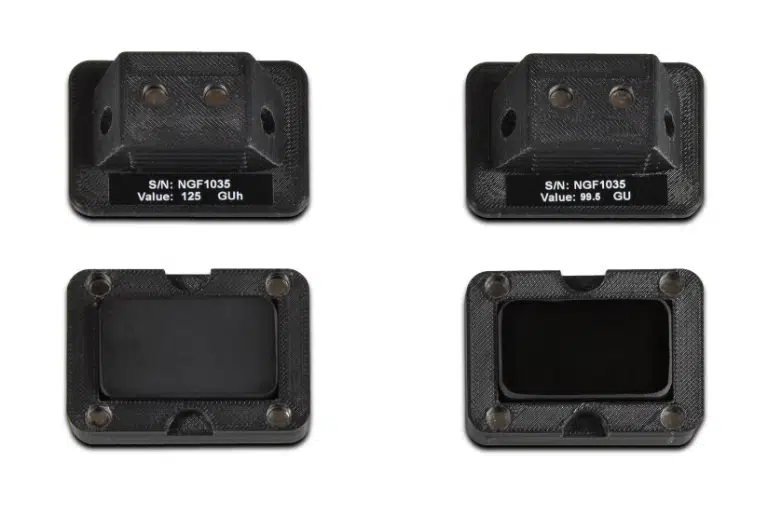

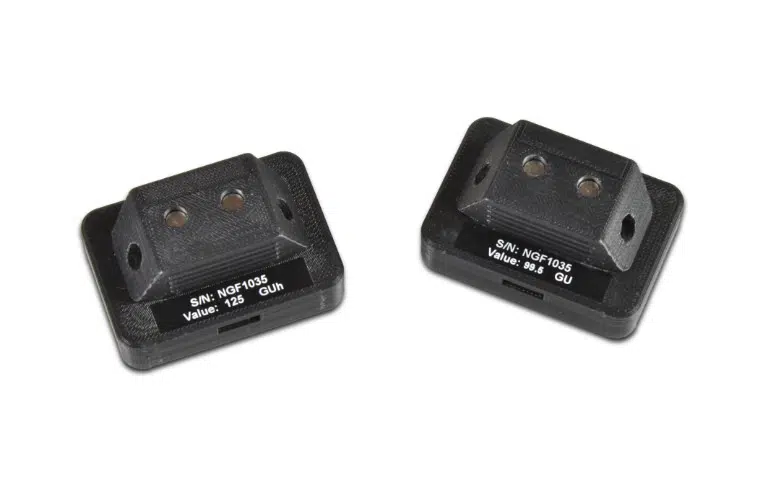

The Novo-Gloss Flex 60 is supplied with 2 calibration standards for low and high gloss which gives increased accuracy and resolution for low gloss surfaces.

The calibration standards are magnetically enclosed which offers superior protection from contamination.

The standards are magnetically attached to the instrument measuring head to ensure repeatible calibration.

Measurement Head​

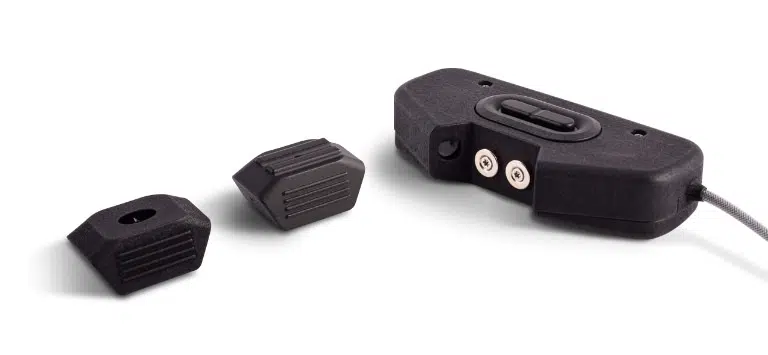

The instrument is supplied with interchangeable measurement adaptors.

  1. Standard adaptor
  2. Steel surface adaptor (magnetic) for increased repeatibility for ferrous materials.

Both adaptors can be replaced if they are damaged.

The measuring head is ultra lightweight with integrated measurement buttons for single handed operation.

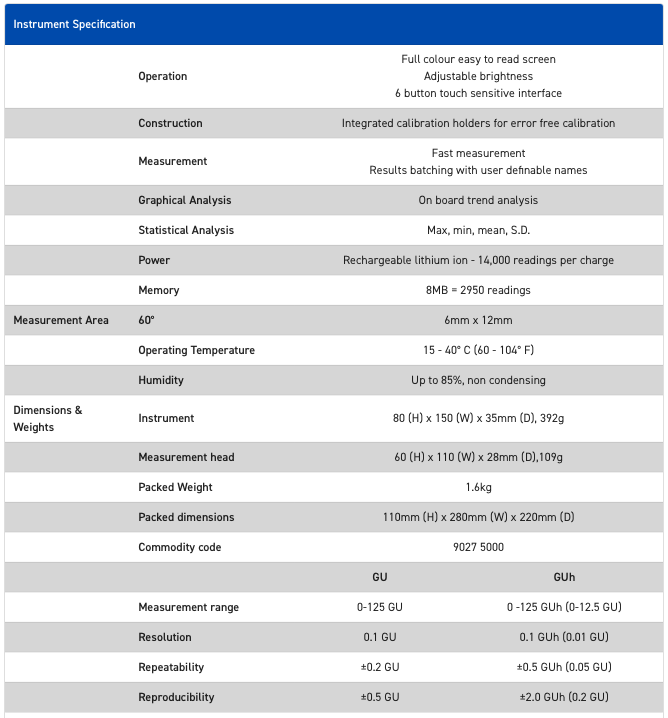

Specifications

Standards

ISO 2813, ASTM D523, ASTM D2457 DIN 67530, JIS Z 8741, JIS K 5600-4-7

Free extended warranty

Free extended 2 year warranty: Requires registration at www.rhopointinstruments.com/help-services/forms-feedback/instrument-registration/ within 28 days of purchase. Without registration, 1 year standard warranty applies.

Free light source warranty

Guaranteed for the life of the instrument.

Calibration and service

Fast and economic service via our global network of accredited calibration and service centres. Please visit www.rhopointinstruments.com/help-services/calibration-servicing/ for detailed information.

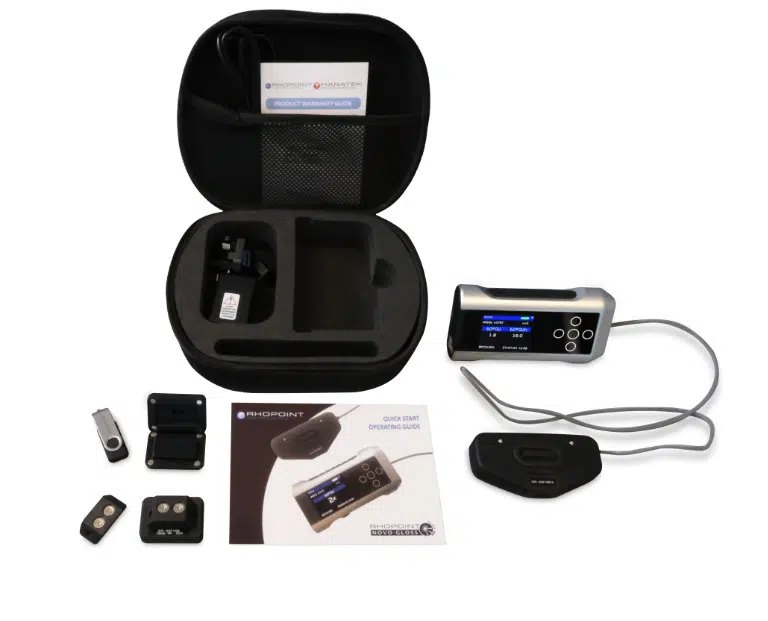

What’s in the box

  • Certified high and low gloss calibration tiles with certificates
  • Standard and steel surface measuring head adaptors
  • USB data cable
  • Wrist strap
  • USB/mains charger
  • Cleaning cloth
  • USB memory stick containing:
    • Novo-Gloss Multigauge software

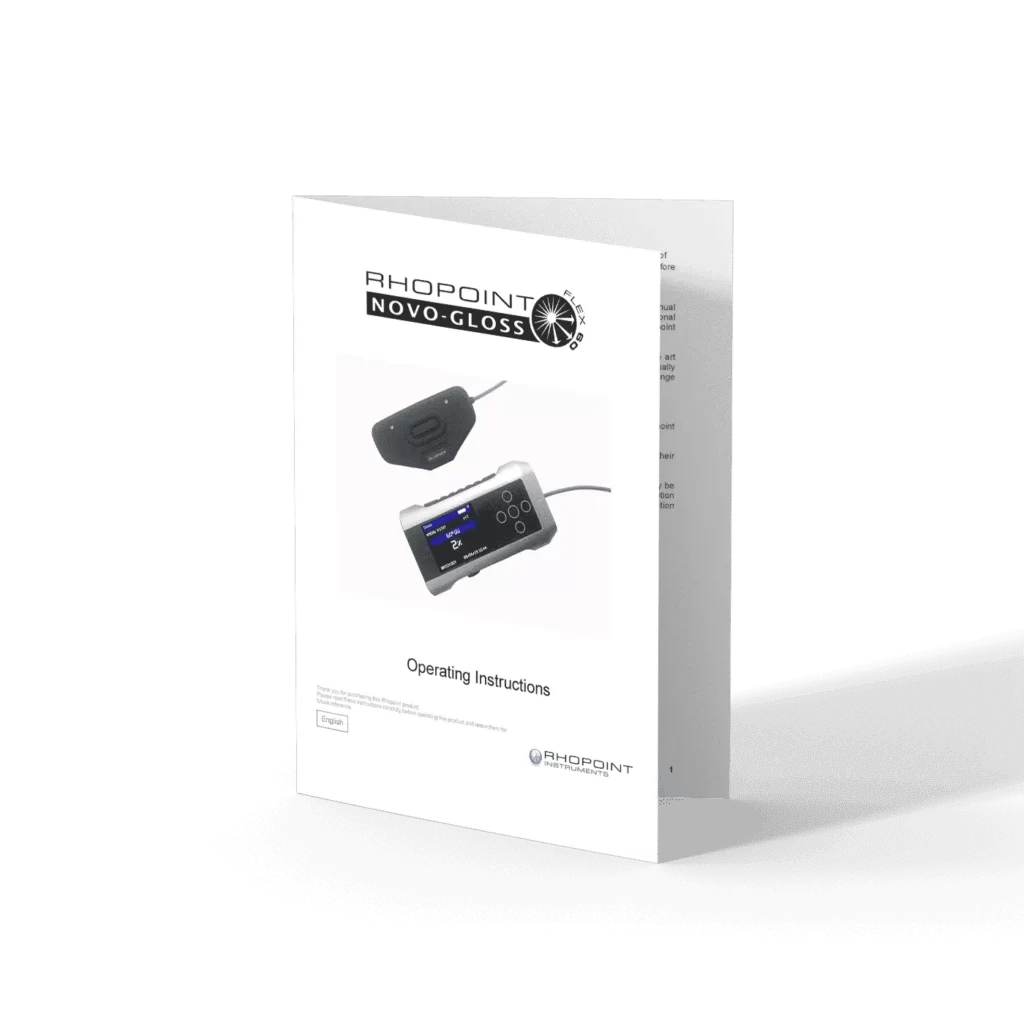

    • Instruction manual
    • Bluetooth data app
    • Example Excel spreadsheets
    • Instrument calibration certificate

Why Measure Gloss

The gloss level of an object is one of the visual attributes used by a consumer to determine whether or not that object is fit for purpose.

Gloss has been defined as ‘The attribute of surfaces that causes them to have shiny or lustrous, metallic appearance.’

Manufacturers design their products to have maximum appeal: from highly reflective car body panels to glossy household appliances or matt finish automotive interior trim.

This is especially noticeable where parts may be produced by different manufacturers or factories but will be placed adjacent to one another to create the finished product.

Gloss can also be a measure of the quality of the surface, for instance a drop in the gloss of a coated surface may indicate problems with its cure, leading to other failures such as poor adhesion or lack of protection for the coated surface.

The gloss of a surface can be greatly influenced by a number of factors, for example the smoothness achieved during polishing, the amount and type of coating applied or the quality of the substrate.

It is for these reasons that many manufacturing industries monitor the gloss of their products, from cars, printing and furniture to food, pharmaceuticals and consumer electronics.

It is important therefore that gloss levels are achieved consistently on every product or across different batches of products.

How is gloss measured

Gloss is measured by shining a known amount of light at a surface and quantifying the reflectance.

Which angle should I use for my application?

ISO 2813 and ASTM D523 (the most commonly used standards) describe three measurement angles to measure gloss across all surfaces.

Gloss is measured in gloss units (GU) and is traceable to reference standards held at NIST (USA).

Applications

  • Automotive Interior
  • Furniture
  • Plastics (curved)
  • Plastic Industry
