Optimap3
Optimap3 - Image 2

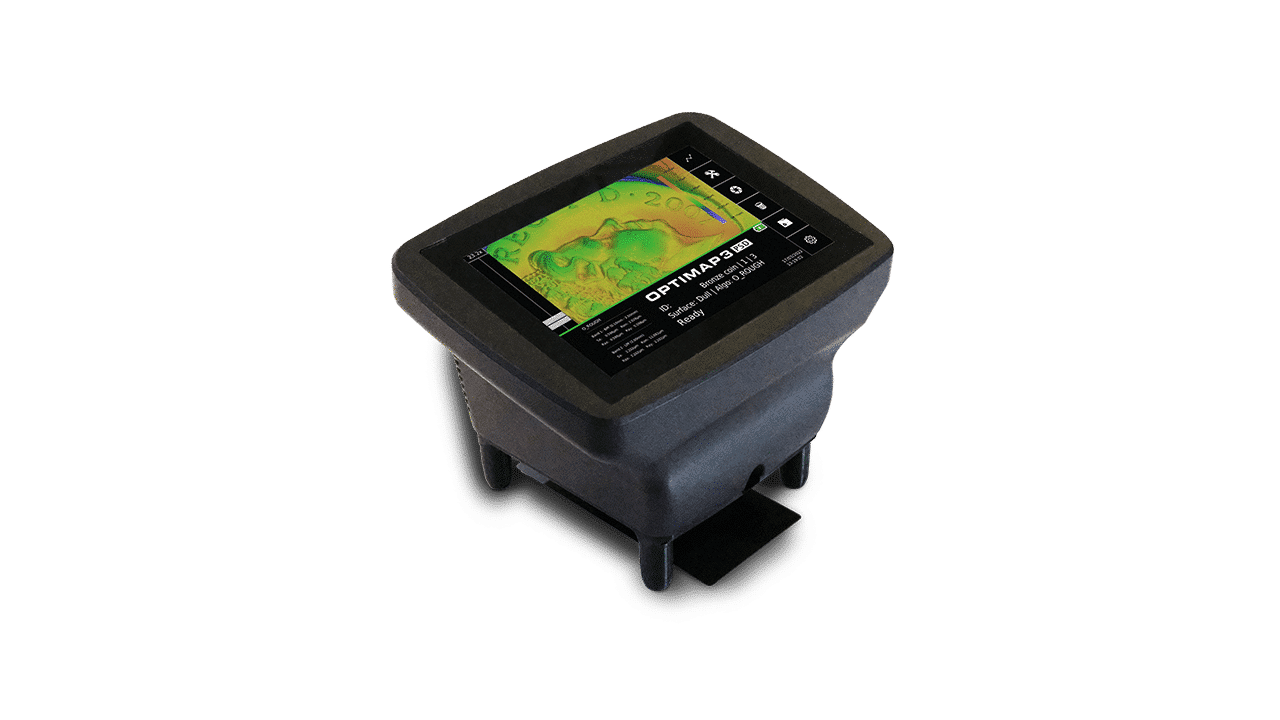

Optimap3

  • Map and measure surface finish with the the Optimap3
  • Characterization of common surface irregularities including defects, waviness and roughness
  • Suitable for all finishes, from matt to mirror
  • On-screen image analysis

Category:

Description

Advanced Surface Metrology

Optimap3, the unique portable solution for surface inspection, allows rapid large area measurement and analysis of all types of coated or uncoated surfaces.

Powerful on-screen functionality includes cross-sectional viewing allowing detection and characterisation of common surface irregularities including defects and waviness.

In quality control, inferior surface evaluation methods are still commonplace. Many methods lack definition, are time consuming and subjective. Modern consumers demand high quality products with surface finishes that are homogeneous and free from defects.

The use of Optimap3 provides a unique solution to these measurement challenges providing quantifiable data for improved production control.

In one fast operation Optimap3 maps the topography of a surface displaying defects and texture in incredible detail. Mapped information is processed into objective surface data that can be used to effectively control product quality.

Optimap 3 graph

The Optimap 3 can measure
  • Orange Peel
  • Waviness
  • DOI
  • Overspray
  • Blistering
  • Sagging
  • Waterstains
  • Inclusions

Representative Surface Analysis

Representative surface analysis

Optimap3 objectively measures and characterises many aspects of surface quality including texture, waviness and local defects including orange peel, inclusions, dents and scratches.

Optimap 3

Its large measurement area (65 x 54mm) and speed of operation (under 10 secs) provides rapid measurement with results that are more representative than those made with profilometers or other optical scanning instruments and can be reported in traceable SI units or other industry specific units.

With a lateral resolution of <37um Optimap3 has the power to capture surface defects that are invisible to the human eye.

optimap 3 screen graph

3D Surface View

optimap 3 screen graph

Magnify

optimap 3 screen graph

Cross Section View (anywhere on surface)

optimap 3 screen graph

View Surface Underneath

optimap 3 screen graph

Rotate Surface

optimap 3 screen

Zoom in on Surface Features

A unique measurement solution

A unique measurement solution

Next Generation Revolutionary Optimap surface analysis instrument.

The icon based touch screen allows ease of use by simply pressing the relevant active areas on the screen.

HIGHER Resolution Full Field Surface Mapping (<0.1um Z- lateral, 37um X-Y resolution)

Allows full field measurement of surface areas to be measured in high detail

Dual focus system with reflected image analysis

Automatically detects the reflectivity level of the surface and adjusts the setup to suit

On board surface roughness / waviness

Results comparable to profilometry and other optical measurement techniques

Non-contact measurement for wet paint

The ONLY product that can measure the formation of orange peel of wet paint

Compatible with visual appearance scales

(TAMS and Wavescale values) used in automotive and high end applications

Benefits of using the Optimap3

  • Fast, reliable and portable
  • Intuitive user interface
  • Flexible screen view features
  • Powerful offline analysis
  • Instant 3-D maps of surface features
  • On screen visualization and analysis of texture and defects
  • Easy to understand parameters highly correlated to human perception
  • Results correlated to interferometry measurements

Intuitive User Interface

Intuitive user interface

Optimap3’s intuitive user interface provides operation, setup and display of measurement results.

The icon based touch screen allows ease of use by simply pressing the relevant active areas on the screen.

Optimap 3 screen image coin

Optimap 3 graph - coin

Optimap 3 graph - cross sections

The magnification of the image can be adjusted via magnification slider.

Cross sections can be created through the surface by touching the relevant point of interest on the displayed image and viewing the chart in the upper display.

The cross section is active and can be moved over the image in X and Y to view changes across the surface.

Optimap 3 graph magnified

Optimap 3 graph magnified

How does the Optimap3 measure and analyse surfaces?

How does the Optimap3 measure and analyse surfaces

Optimap3’s intuitive user interface provides operation, setup and display of measurement results.

The icon based touch screen allows ease of use by simply pressing the relevant active areas on the screen.

Optimap 3 product with hand

Phase Measurement Deflectometry (PMD) is used to map surface topography

Fringe patterns are displayed on an internal target screen.

The Fringe Patterns are animated (phase stepped) in X & Y directions.

Optimap 3 dull mode

Dull surface optimap 3

Optimap 3 reflective mode

Reflective surface – optimap 3

The Optimap3 has two modes – reflective and dull

High frequency fringes are used to measure reflective surfaces – low frequency for dull surfaces.

Optimap 3 diagram

The PMD is a non contact technique using white light reflection

The fringe patterns are reflected by the surface- the reflection is distorted by surface texture and defects.

The reflected images are captured by an internal variable focus camera.

optimap 3 screen graph

High resolution maps show surface texture and defects

The built in PMD surface mapping engine combines data from 8 reflected fringe patterns to create a highly representative map of the measured surface.

Maps of surface curvature or altitude can be displayed. High resolution maps show surface texture and defects. Built in profile tool can be used to measure the height and size of surface features.

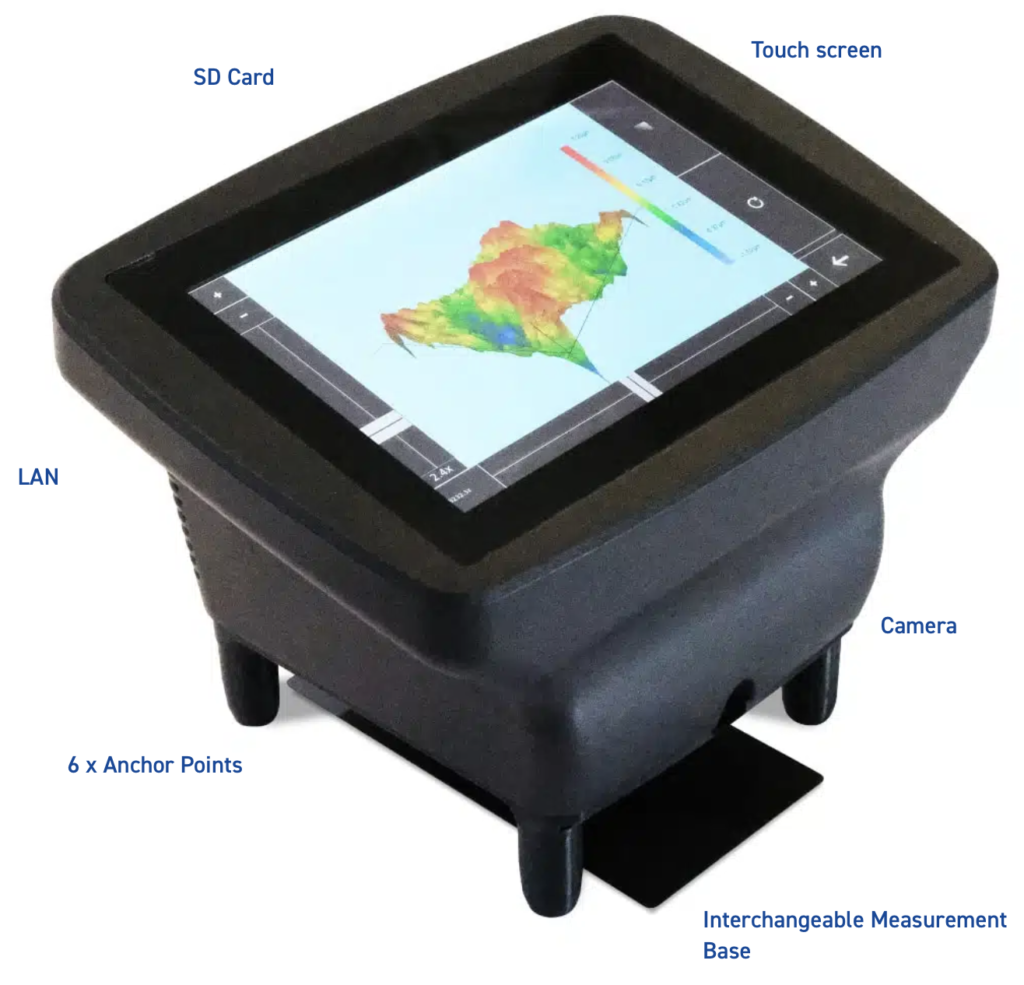

Features

Features

Rugged and accurate, the Optimap3 is suitable for laboratory, factory or on-site inspection.

Measurement Surfaces and Applications

Measurement Surfaces and Applications

The Optimap3 can be used on a wide range of surfaces from ultra low gloss to mirror finish.

Aerospace

Yacht Coatings

Automotive

Plastics and Composites

Furniture

Paints and Coatings

Displays

Accessories

Accessories

Included accessories

  • Verification tile
  • USB key

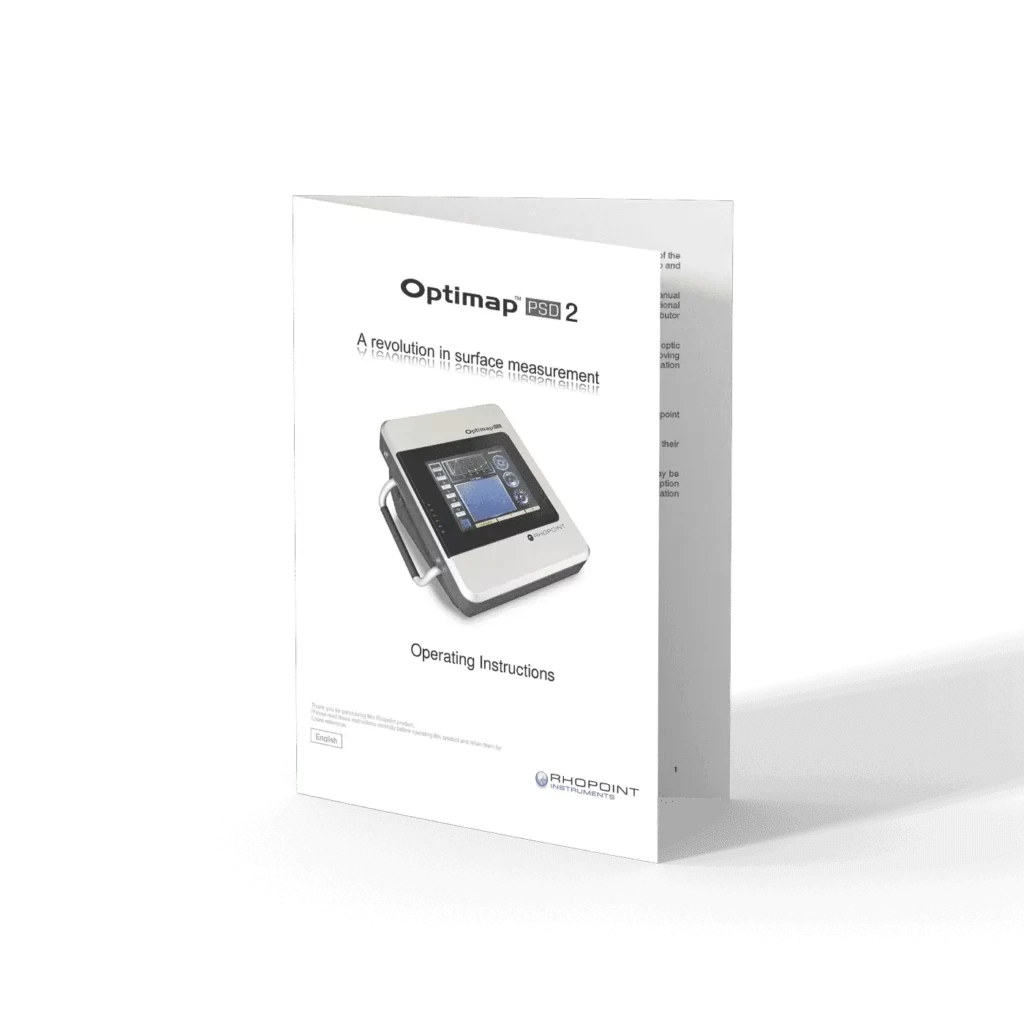

  • Instruction manual
  • Optimap Reader software
  • Measurement base

Optional accessories

  • Non-contact base for measuring wet paint

Optimap Reader software

Featuring advanced tools for the identification, classification and quantification of surface defects including:

  • Pinholes
  • Inclusions
  • Scratches

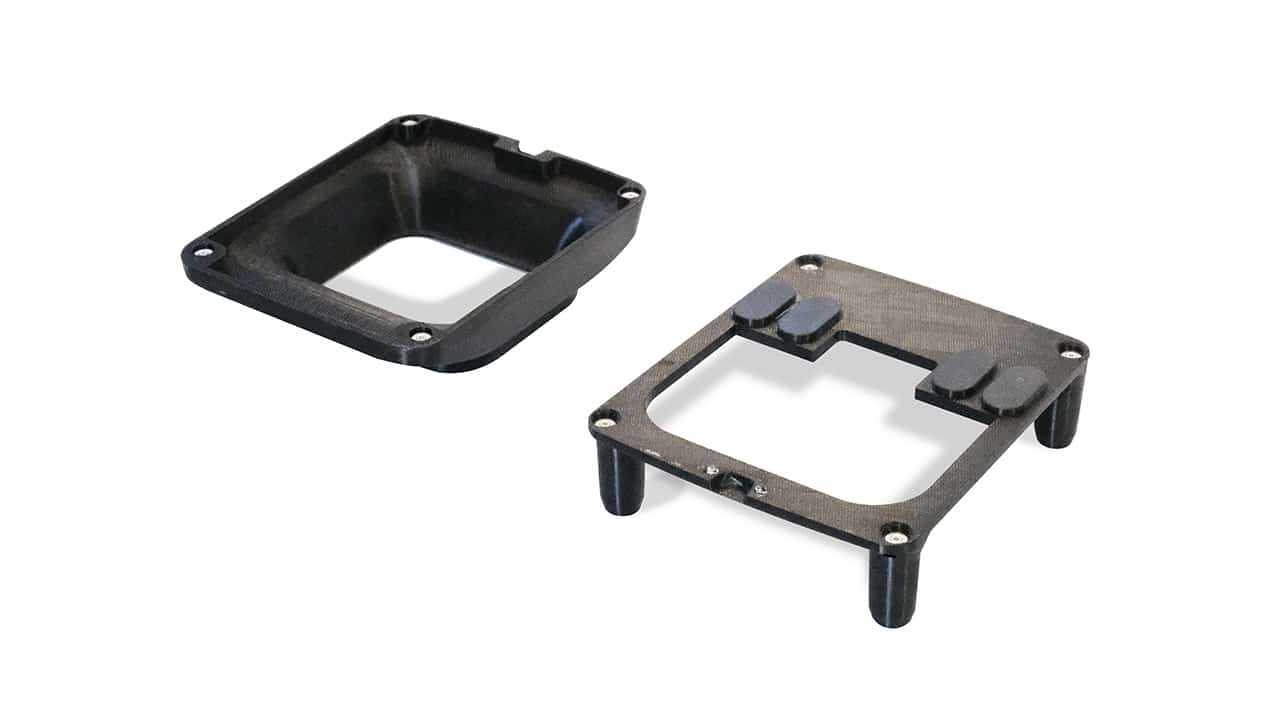

Optimap 3 accessories - bases

Instrument verification

Due to the PSD measurement principle, the Optimap requires no calibration.

It is recommended however that a verification check is performed periodically (about once every 3 months) using the reference tile included with the instrument.

Verification check is simple requiring one measurement to be made and comparing the result obtained with the values indicated on the tile.

If the measured values are within the agreed tolerance then the instrument can be used. If they are outside the tolerance please contact your nearest Rhopoint Authorised Service Representative for advice.

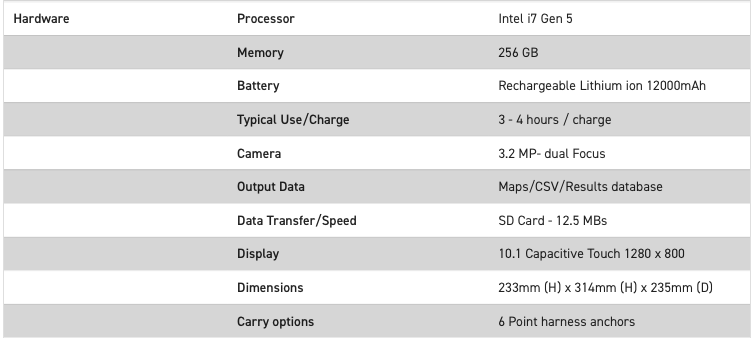

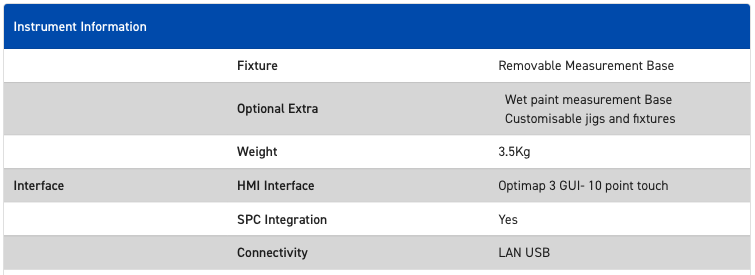

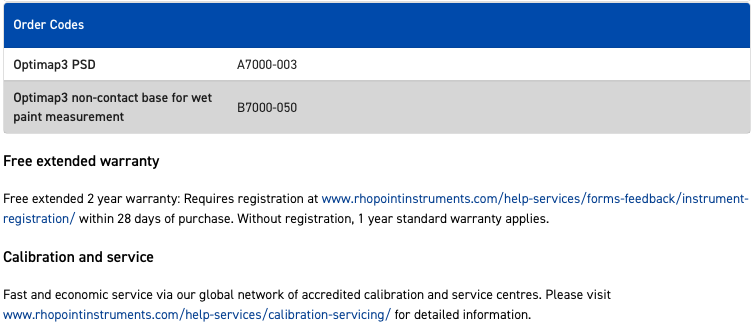

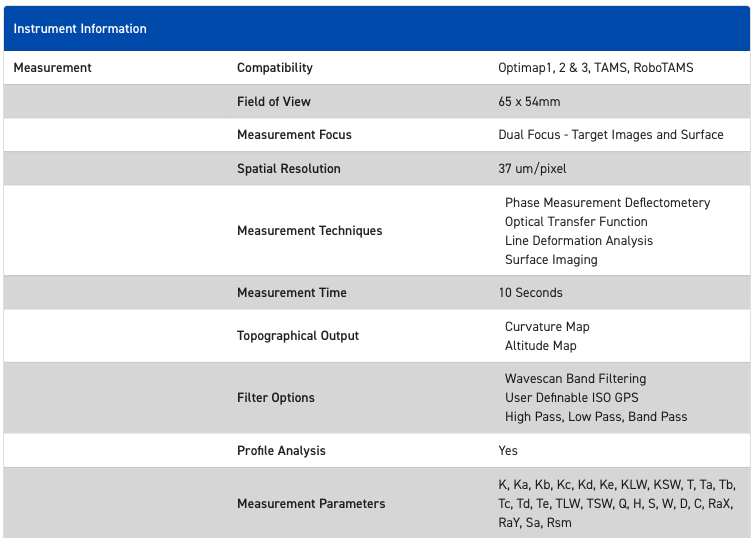

Specifications

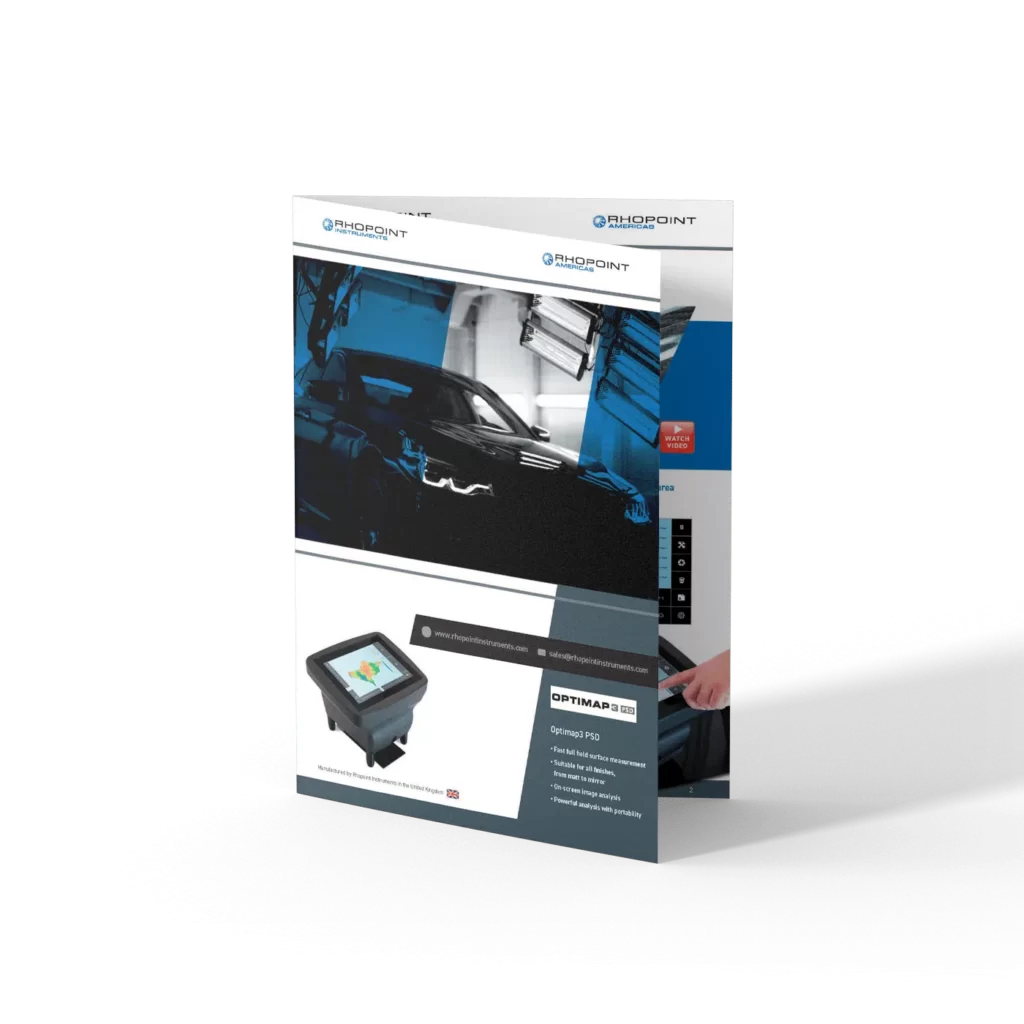

Downloads
