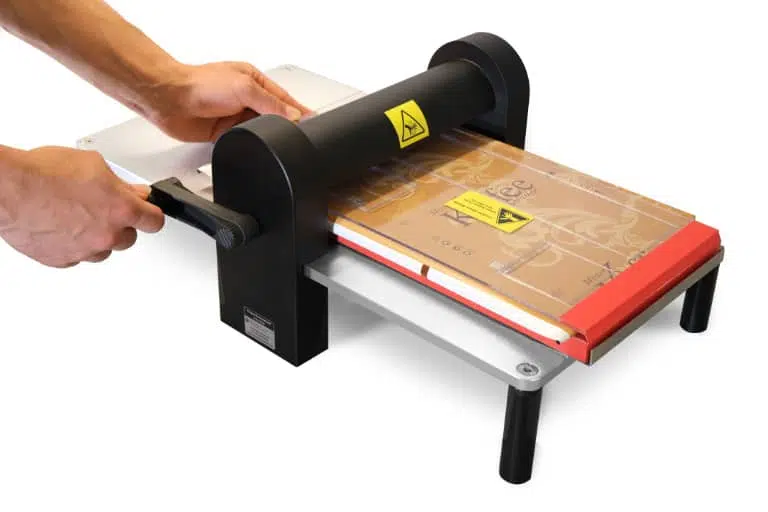

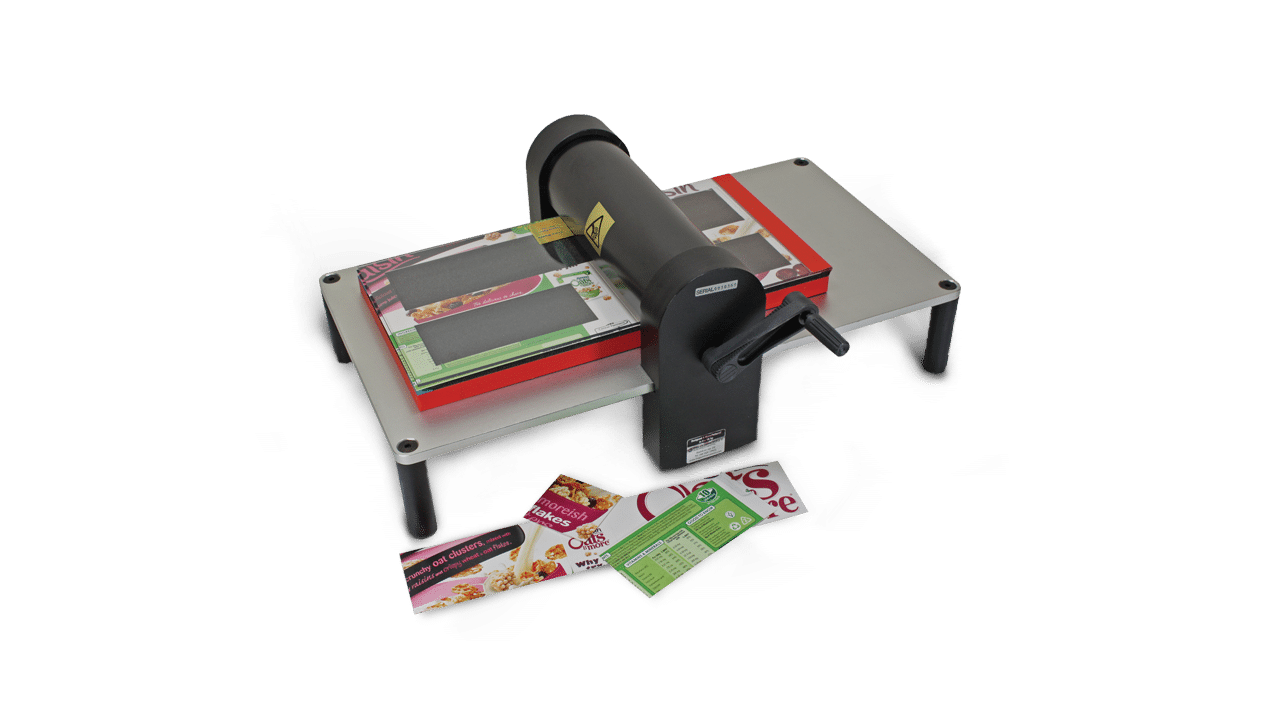

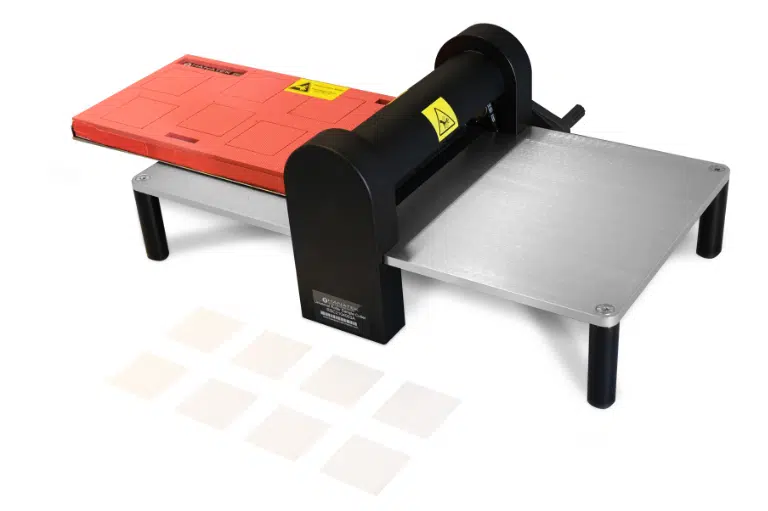

Hanatek Universal Sample Cutter (USC)

  • Configurable for multiple test types e.g. friction, grammage, rub
  • Suitable for film, paper, foils etc
  • Same accuracy independent of operator
  • Repeatable, time saving

Industries and Applications

Description

The Hanatek Universal Sample Cutter has been designed for the simple cutting of samples for the packaging laboratory.
Variety of Substrates and Test Types

Suitable for a variety of substrates including those that are hard to cut with traditional cutters.

  • Film, down to 6μm
  • Tissue
  • Paper
  • Carton boards
  • Foils
  • Laminate
Time

Save valuable time by preparing multiple samples simultaneously.

Cost Effective

The USC uses interchangeable dies to suit different test types. Simply purchase a new die for the test type required.

Safety

Increase operator safety – no knives required.

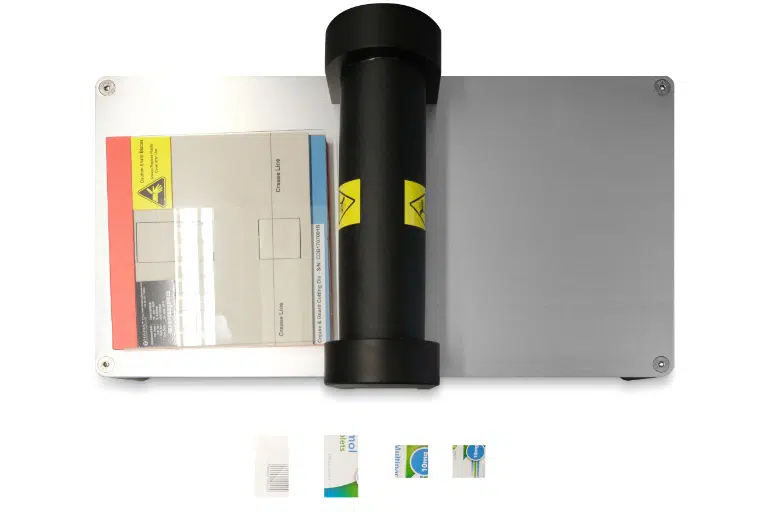

Dies

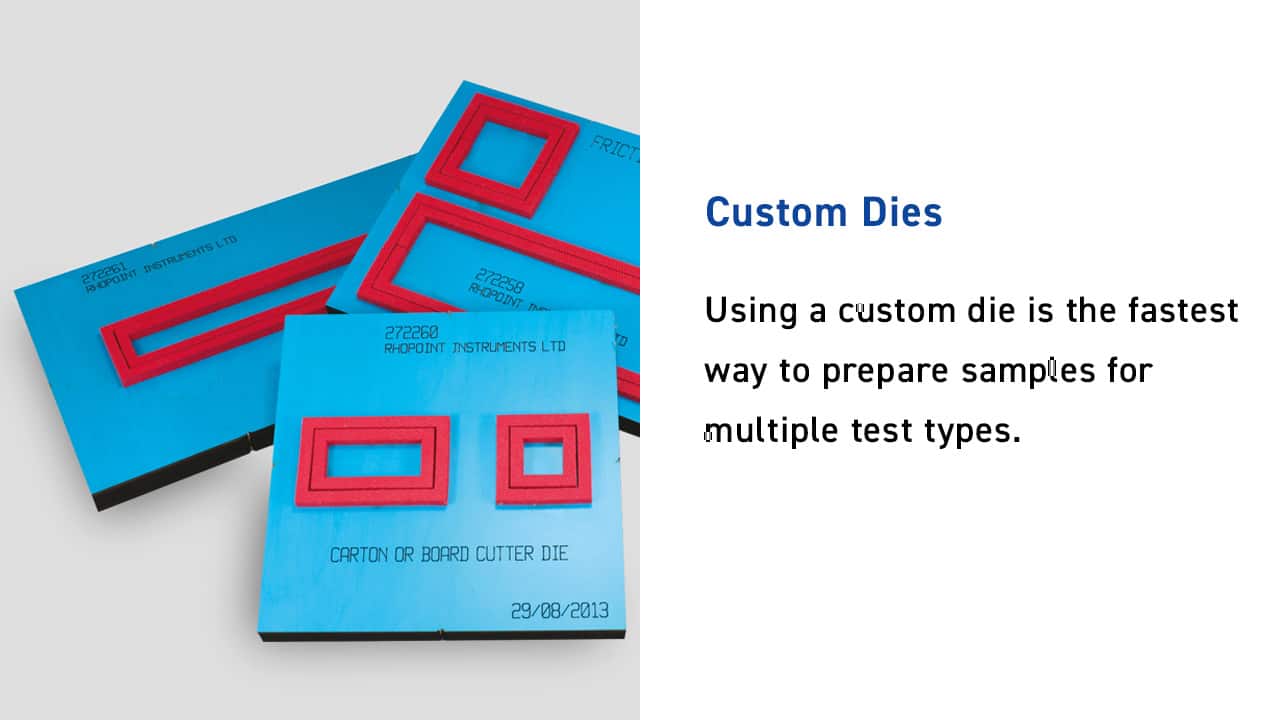

Custom Dies

Using a custom die is the fastest way to prepare samples for multiple test types. From a single sheet of material, samples can be prepared accurately and quickly.

1 or 2 of the same shape.

Up to 5 shapes of different sizes.

More than 5 different sized shapes or additional punched holes within shapes.

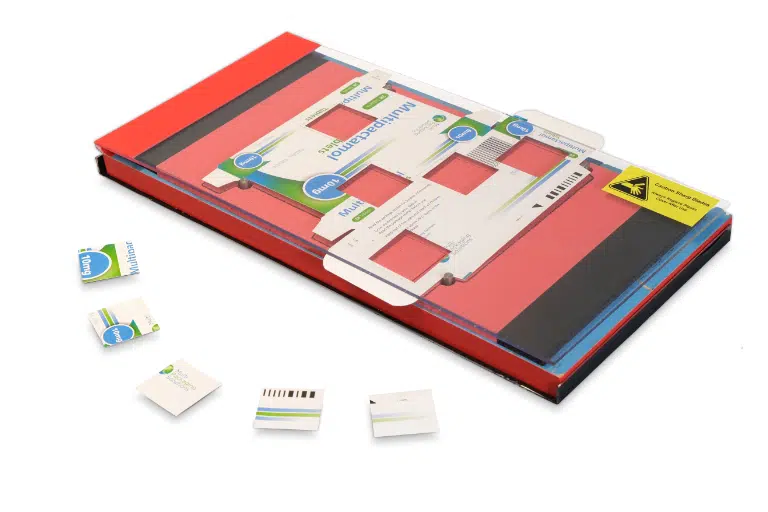

Crease and stiffness samples for a given pack size. Uses ejector pins for alignment.

Standard Dies

We have standard dies available to cut samples for most test types including:

  • Friction
  • Tensile
  • Grammage
  • O2 permeability
  • CO2 permeability
  • WVTR
  • Rub resistance
  • Carton crease
  • Carton stiffness & more

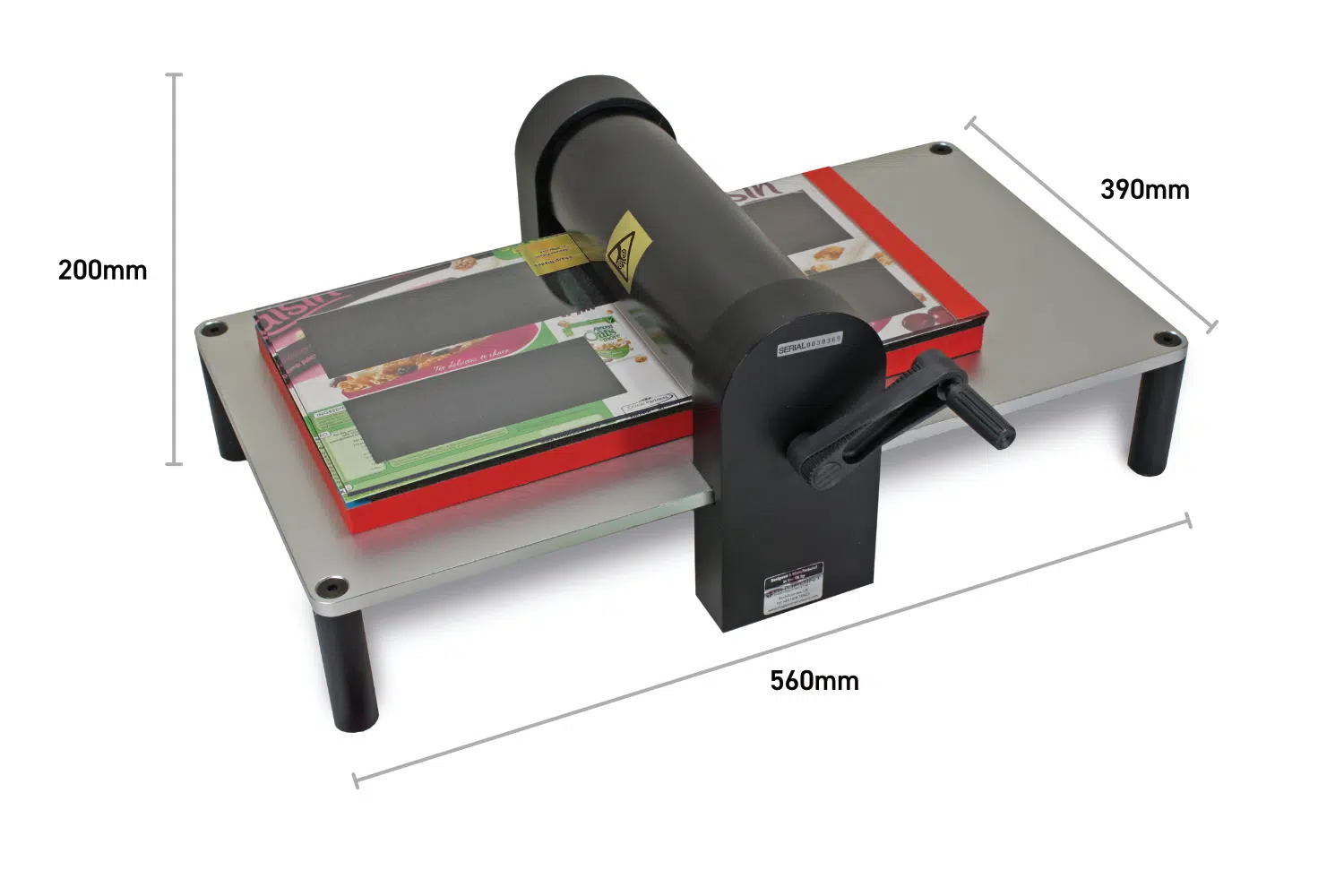

Dimensions

Small Die

Large Die

Substrates & Standards

The USC is suitable for cutting a variety of substrates from 6μm to 250μm.

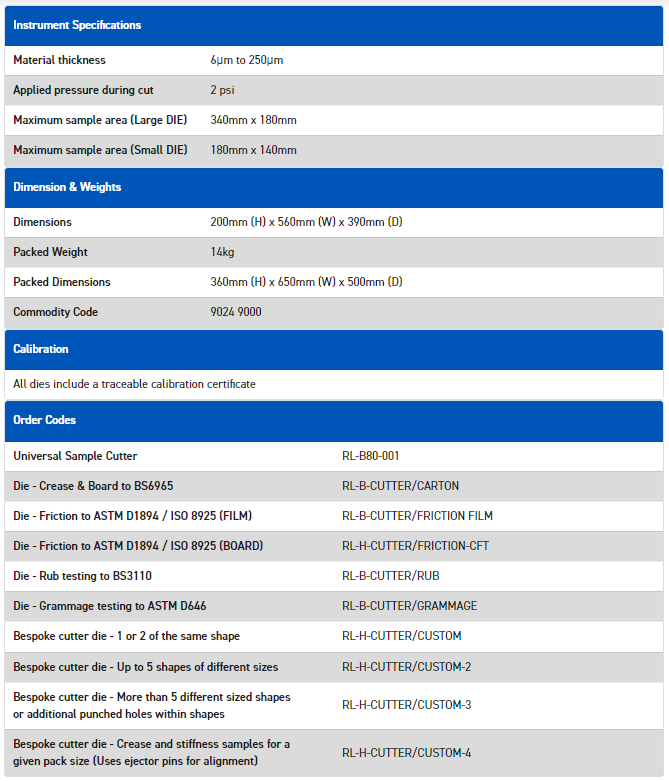

Specifications

Free extended warranty

Free extended 2 year warranty: Requires registration at www.rhopointinstruments.com/help-services/forms-feedback/instrument-registration/ within 28 days of purchase. Without registration, 1 year standard warranty applies.

Calibration and service

Fast and economic service via our global network of accredited calibration and service centres. Please visit www.rhopointinstruments.com/help-services/calibration-servicing/ for detailed information.
